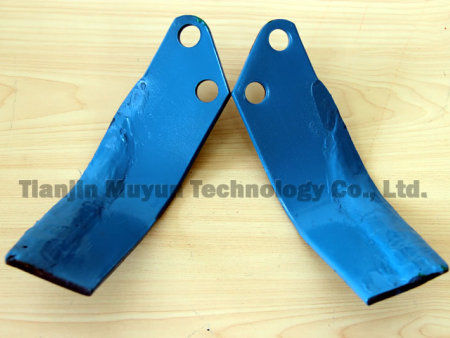

alloy rotavator blade MJF660C

alloy rotavator blade

MuYun Alloy rotary blade

  Our blades was made from high quality steel,which was produced by China famous steel factory which means our blades will have al longer time.We do a lot of experiment to create an alloy formula which can improve the performance of rotary blades.And with individual deposition techniques our product have obvious advantages on the quality of agricultural blades.

1. Material: Elastic Steel

2. Item Name: Field-Managing Blade--The Field Straw Chopper Blad

3. Place of Origin: Tianjin China

4. Raw Material: 65mn,60si2mn,70Mn,60Mn

5. Heat Treatment: Special Treatment

6. Painting Color: Natural Vanish, Red, Blue, Green Varnish, Customer

7. Specification: alloy coatings

8. Usage: Agricultural Products Processing, Farmland Infrastructure, Tillage, Harvester, Planting and Fertilization, Grain Threshing, Cleaning and Drying

9. Power Source: Diesel

10. Brand: Mu-yun tech

11. Applications: Garden Tools, Mini Tillers, Cultivators, Rotavato

12. Process: Forged

13. Surface Treatment: Spray, Painting

14. Hardness: HRC42-48

15. Transport Package: can ordered by buyer

16. Origin: Tianjin

17. Chemical composition of different steel

18. Material	C(%)	Si(%)	Mn(%)	Cr(%)	P(%)	S(%)
    65Mn	0.62-0.70	0.17-0.37	0.9-1.20	<=0.25	<=0.015	<=0.035
    60Si2Mn	0.56-0.64	1.50-2.00	0.69-0.90	<=0.35	<=0.035	<=0.035
    70Mn	0.67-0.75	0.17-0.37	0.90-1.20	<=0.25	<=0.035	<=0.035
    60Mn	0.57-0.65	0.17-0.37	0.7-1.00	<=0.25	<=0.035	<=0.03
